place of origin:
Chinawarranty:
1 yearcpu:
Intel Celeron 1800/1900/I5 (optional)memory:
DDR3 2G/4G/8G(optional)hard disk:
mSATA SSD 32G/64G/128G(optional)screen size:
15.6 inch TFT LCD,LED Backlightresolution:
1366(RGB)*768,XGA/1920(RGB)*1080,XGA(optional)touch screen type:
Capacitive touch screen
Product Configuration
Configuration
Model
GL-802
CPU
Intel Celeron J1800/J1900/I5 (optional)
RAM
DDR3 2G/4G/8G(optional)
Hard disk
mSATA SSD 32G/64G/128G(optional)
O.S. support
Windows 7/8/10/Linux (optional)
Printer
58 mm Big gear printer
Screen Type
15.6 inch LCD,LED Backlight
Display

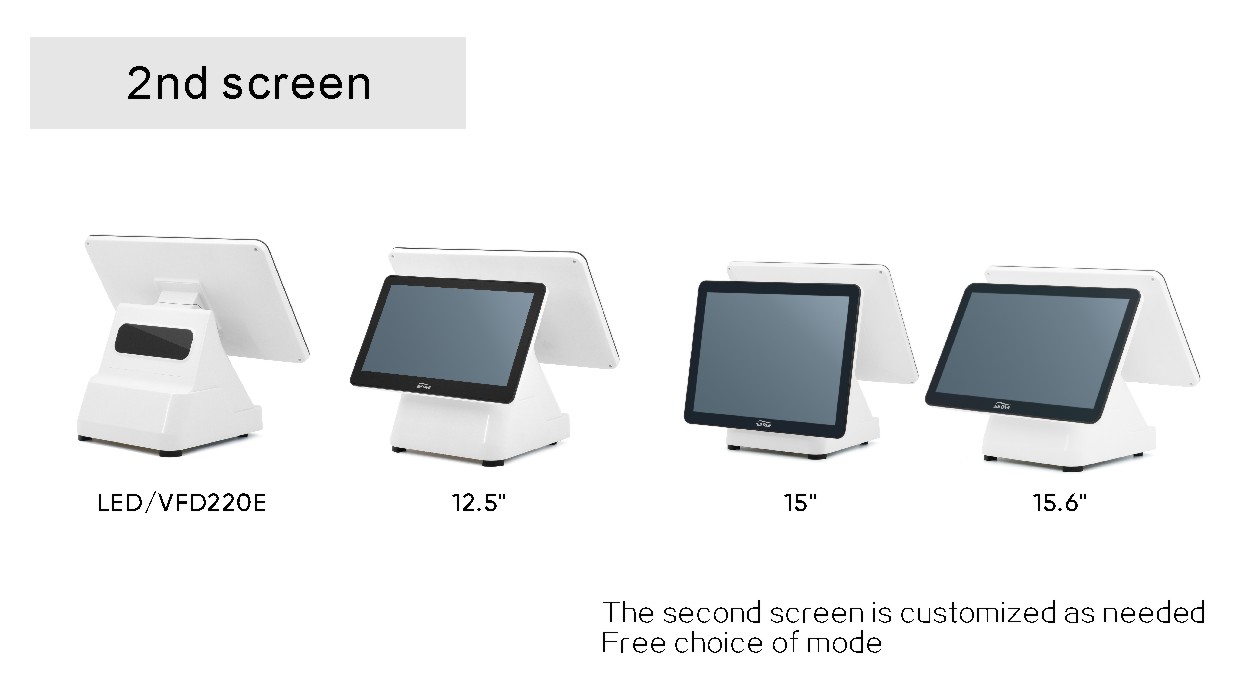

2nd Displays
LED 8 Customer display/VFD Customer display/12.5 inch LCD screen/15.6 inch LCD screen (optional)
Touch type
Capacitive touch screen
Resolution
1366(RGB)*768,XGA/1920(RGB)*1080,FHD(optional)
Aspect Ratio
16:9

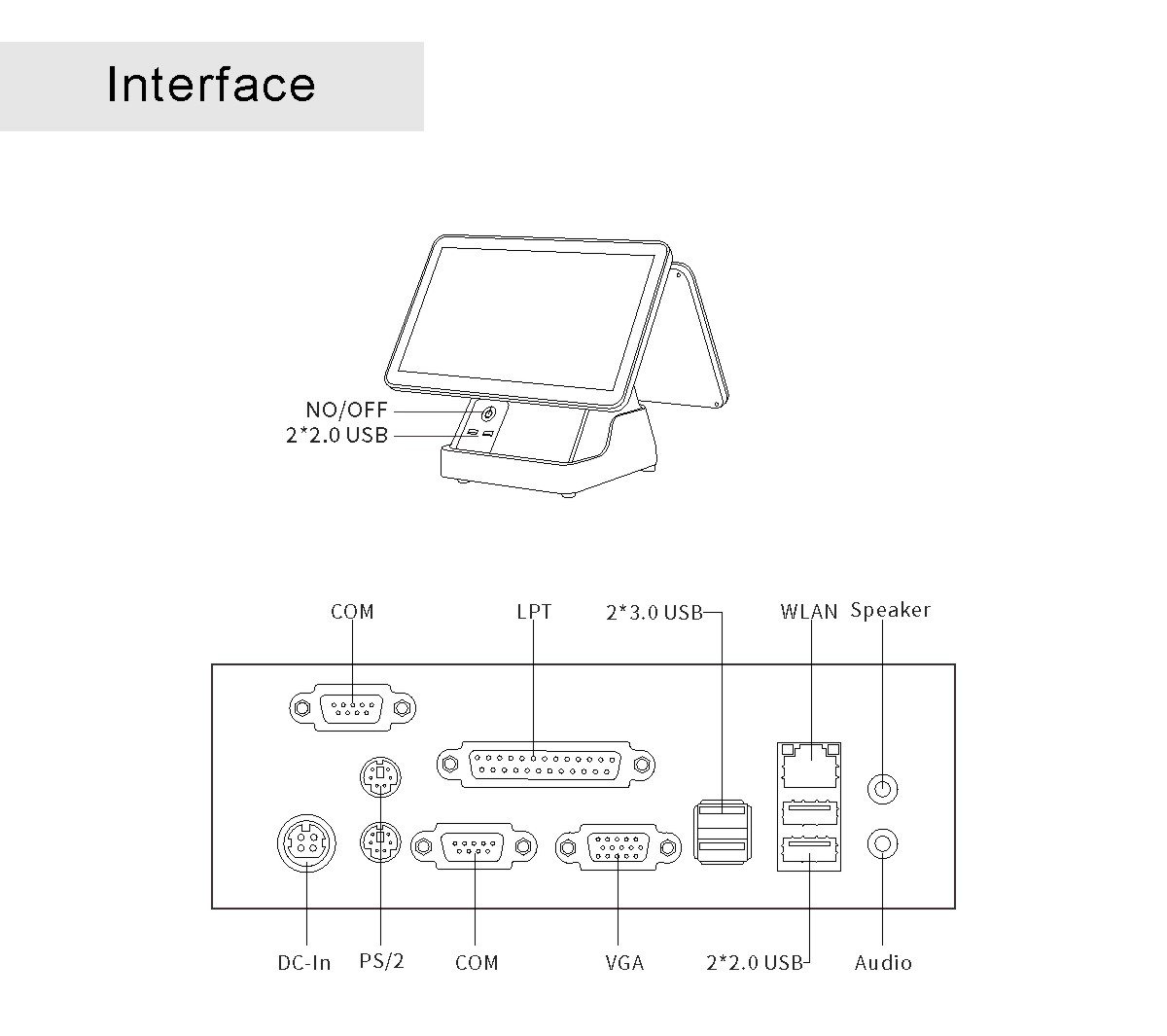

Interface
Audio
Audio-out *1
LAN
RJ45 *1
USB
USB 2.0*5; USB 3.0 *1
Display
VGA*1
COM
RS232*2
Power DC-IN
12V 4PIN *1
Weight
Single screen
5.5KG
Double screen 15.6+15.6
6.75KG
Double screen 15.6+12.5
5.8KG

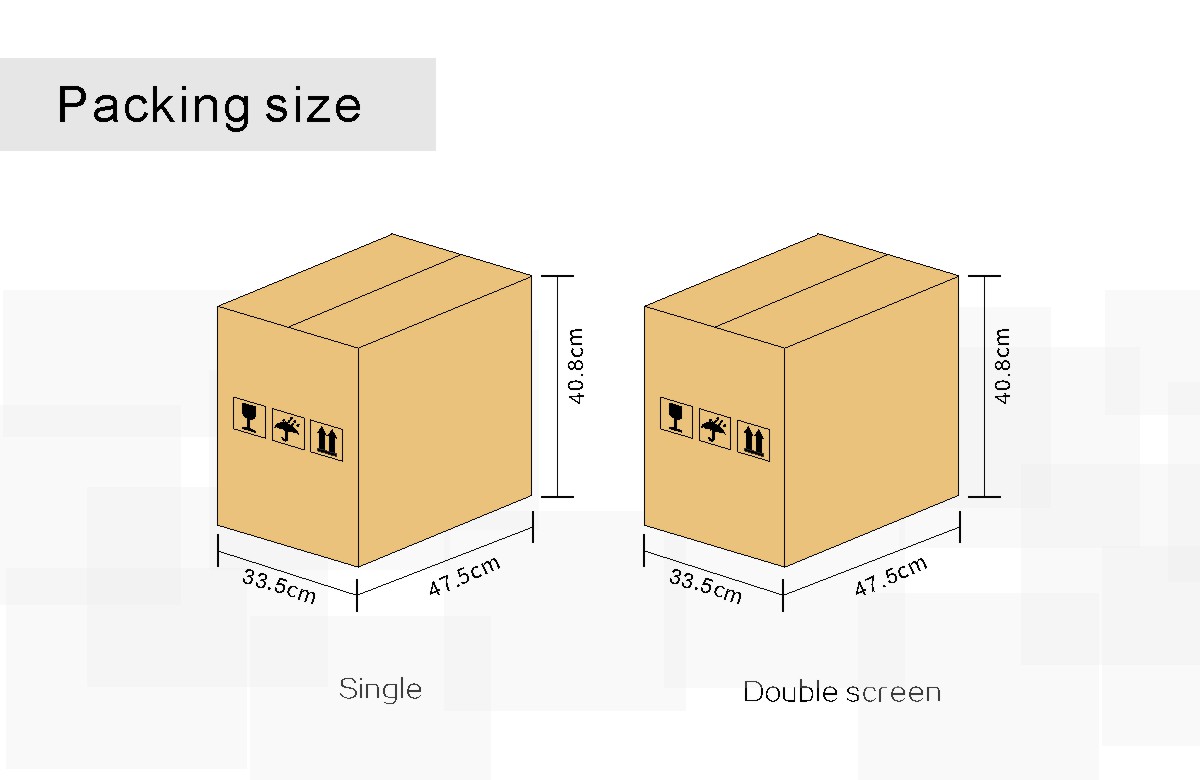

Size
Single screen
47.5*33.5*40.8(CM)
Double screen
47.5*33.5*40.8(CM)

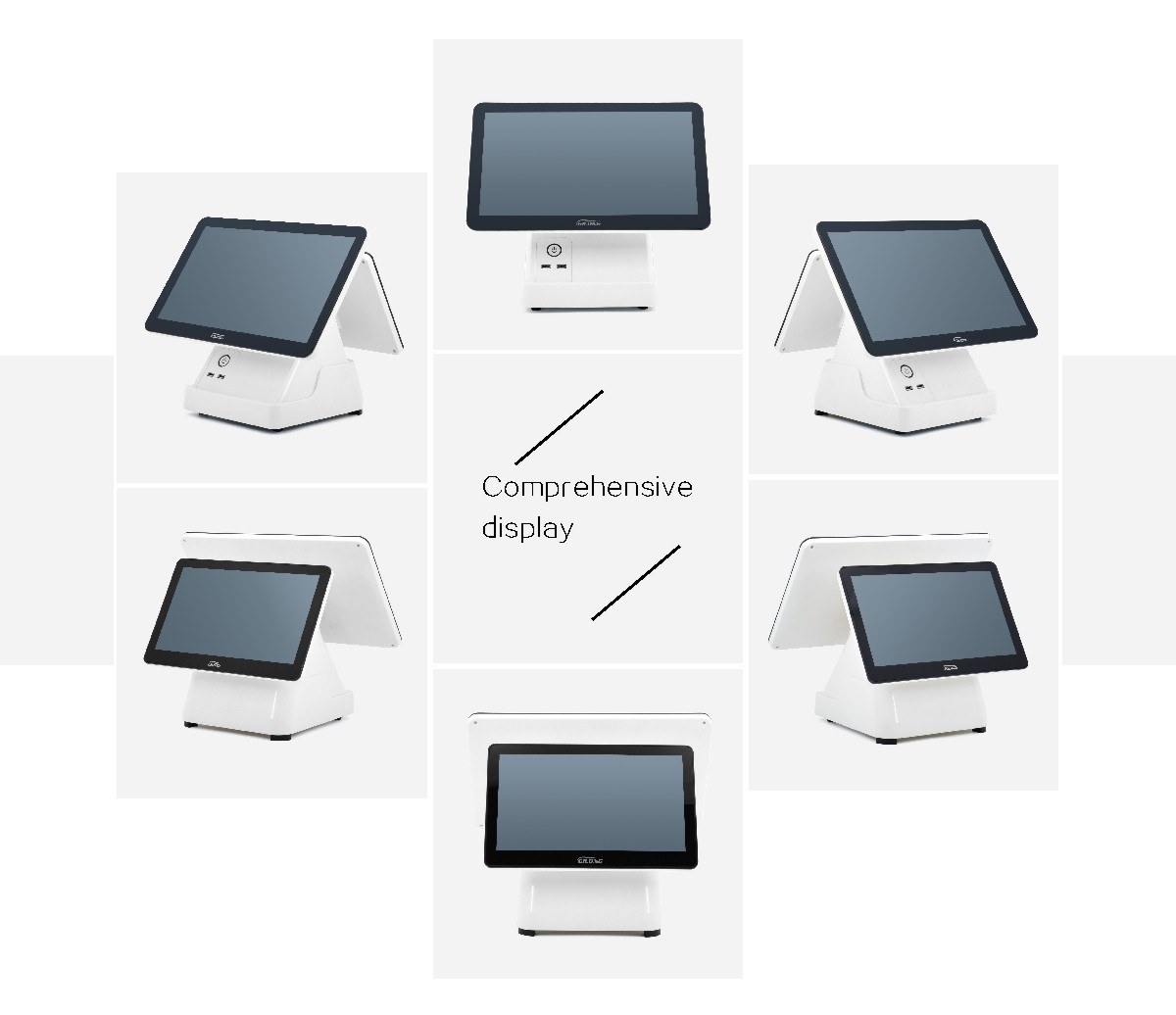

Product Scene
Configuration | Model | GL-802 | ||||
CPU | Intel Celeron J1800/J1900/I5 (optional) | |||||
RAM | DDR3 2G/4G/8G(optional) | |||||
Hard disk | mSATA SSD 32G/64G/128G(optional) | |||||
O.S. support | Windows 7/8/10/Linux (optional) | |||||
Printer | 58 mm Big gear printer | |||||
Screen Type | 15.6 inch LCD,LED Backlight | |||||
Display | 2nd Displays | LED 8 Customer display/VFD Customer display/12.5 inch LCD screen/15.6 inch LCD screen (optional) | ||||
Touch type | Capacitive touch screen | |||||
Resolution | 1366(RGB)*768,XGA/1920(RGB)*1080,FHD(optional) | |||||
Aspect Ratio | 16:9 | |||||
Interface | Audio | Audio-out *1 | ||||
LAN | RJ45 *1 | |||||
USB | USB 2.0*5; USB 3.0 *1 | |||||
Display | VGA*1 | |||||
COM | RS232*2 | |||||
Power DC-IN | 12V 4PIN *1 | |||||
Weight | Single screen | 5.5KG | ||||
Double screen 15.6+15.6 | 6.75KG | |||||
Double screen 15.6+12.5 | 5.8KG | |||||
Size | Single screen | 47.5*33.5*40.8(CM) | ||||
Double screen | 47.5*33.5*40.8(CM) |

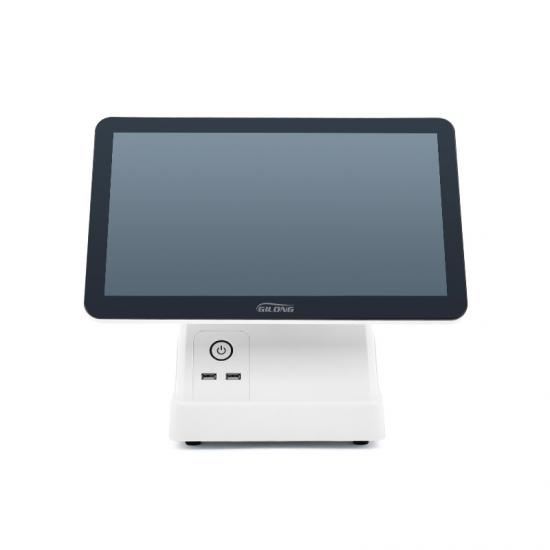

The new Touch screen Till with integrated 80mm thermal printer, 15.6 inch capacitive touch screen, MSR optional OEM/ODM accepted.
